Calculation Methods and Technical Guide for Data Center Cooling Capacity(Detailed Version)

In the digital age, data center rooms have become the lifeline of core business operations. The vast amount of IT equipment within these rooms generates significant heat during operation. If this heat is not removed promptly and effectively, it can directly threaten the safety and stable operation of the equipment. The temperature, humidity, and air quality in a data center need to be strictly controlled through precise environmental control systems, and the rational configuration of the air conditioning cooling system is the key to ensuring the data center environment meets standards. This article details the methods for calculating the cooling capacity required for data center air conditioning, covering heat load composition, calculation steps, relevant standards, and practical examples, providing a complete and practical technical guide.

1. Analysis of Data Center Heat Load Composition

Determining the heat load is the foundation for calculating the required cooling capacity. According to international standards and common practices, the cooling load for a data center's air conditioning system mainly includes the following aspects:

• Equipment Heat Load: This includes heat dissipation from servers, storage devices, networking equipment, UPS power supplies, and other electronic devices. This is the primary source of data center heat load, typically accounting for 70% to 85% of the total. The electrical power consumed by electronic equipment is almost entirely converted into heat, with a conversion rate exceeding 97%.

• Building Envelope Load: This refers to heat transferred into the room through walls, roofs, floors, and other building structures. This load is influenced by factors like building materials, orientation, and seasonal temperature differences.

• Lighting System Load: Heat dissipation from lighting equipment also adds to the data center's heat load.

• Occupant Heat Load: The body heat of data center personnel also generates a small amount of heat load, comprising both sensible and latent heat.

• Fresh Air Load: The introduction of fresh air to maintain positive pressure within the data center also contributes to the heat load, including both sensible and latent heat components.

• Solar Radiation Heat: Heat entering the data center directly through external windows via solar radiation is also a component, though this can be neglected for windowless or basement data centers.

The characteristics of heat load distribution vary for data centers of different scales. In small server rooms, the proportion of heat from equipment is relatively lower, whereas in medium and large data centers, equipment heat can constitute over 85% of the total load. Therefore, when calculating the heat load, it is necessary to determine the weight of each load item based on the actual situation of the data center to avoid over-design or under-design.

Table: Data Center Heat Load Components and Estimated Proportions

2. Detailed Explanation of Cooling Capacity Calculation Methods

Accurately calculating the required cooling capacity is the basis for air conditioning system design. The industry primarily uses three calculation methods: the System-by-System Accumulation Method, the Power and Area Method, and the Area Estimation Method. Each has its advantages and disadvantages and is suitable for different design stages and scenarios.

2.1 System-by-System Accumulation Method

This method involves calculating item-by-item the heat load from each heat source within the data center and then summing them to determine the total cooling requirement. This is the most precise method, suitable for the detailed design stage.

The calculation formula is:
 Qt = Q1 + Q2 + Q3 + Q4 + Q5

Where:

• Q1: IT Equipment heat load (= P × η1 × η2 × η3, where P is total equipment power, η1, η2, η3 are coefficients, typically 0.6-0.8)

• Q2: Lighting equipment heat load (= C × P, where C is heat output per watt, P is lighting power)

• Q3: Occupant heat load (= P × N, where P is heat output per person, N is number of occupants)

• Q4: Building envelope conduction heat (= K × F × (t1 - t2), where K is thermal conductivity, F is envelope area, t1, t2 are indoor/outdoor temperatures)

• Q5: Other heat loads (e.g., fresh air load)

Example for a data center with total equipment power of 100kW, area of 100m², and 5 permanent staff:

• Q1 = 100 × 0.8 = 80kW (assuming η1×η2×η3=0.8)

• Q2 = 1 × (20W/m² × 100m²)/1000 = 2kW (based on standard 20W/m²)

• Q3 = 0.13kW/person × 5 people = 0.65kW (based on 130W per person)

• Q4 = (50W/m² × 100m²)/1000 = 5kW (based on building envelope heat load coefficient of 50W/m²)

• Q5 (Fresh air load, etc.) ≈ 3kW (estimated based on experience)

Total Heat Load Qt = 80 + 2 + 0.65 + 5 + 3 = 90.65kW

While this method is accurate, it requires detailed baseline data and can be difficult to implement in the early project stages when equipment selection is not finalized.

2.2 Power and Area Method

The Power and Area Method is the most widely used simplified calculation method in engineering practice, especially suitable for quick estimates during the planning and design phase.

The calculation formula is:
 Qt = Q1 + Q2

Where:

• Q1: Internal equipment load (= Equipment power × 0.8-1.0)

• Q2: Environmental heat load (= 0.12-0.18 kW/m² × Data Center Area)

The environmental heat load coefficient is selected based on regional climate characteristics: Hot southern regions might use 0.15-0.18 kW/m², while colder northern regions typically use 0.12-0.15 kW/m².

Example for a server room with UPS capacity of 120kVA and area of 85m²:

• Q1 = 120 × 0.8 × 0.8 × 0.8 = 61.44kW (deducting 20% margin considered in design)

• Q2 = 0.1 kW/m² × 85m² = 8.5kW

• Qt = 61.44 + 8.5 = 69.94kW

Thus, this room could select a precision air conditioner with around 70kW cooling capacity. For safety, a 1+1 backup configuration might be used.

2.3 Area Estimation Method

When only the data center area is known, lacking detailed equipment power data, the Area Estimation Method can be used. This method uses cooling load estimation metrics per unit area to calculate the total cooling requirement.

The calculation formula is:
 Qt = S × P

Where:

• S: Data Center Area (m²)

• P: Cooling Load Estimation Metric (W/m²)

The estimation metrics vary for data centers with different purposes:

• Telecommunications switches, mobile base stations: 350-450 W/m²

• Financial data centers: 500-600 W/m²

• Data Centers: 600-800 W/m²

• UPS/Battery Rooms, Power Equipment Rooms: 300-500 W/m²

For example, for a 200m² data center, using the financial data center standard of 600 W/m²:
 Qt = 200 × 600 / 1000 = 120kW

This could be met by selecting 2 precision air conditioners with 58.4kW cooling capacity each, totaling 116.8kW. To ensure reliability, a redundant unit could be added, resulting in a 2+1 backup configuration with 3 units total.

Table: Comparison of the Three Cooling Capacity Calculation Methods

3. Relevant Standards and Air Conditioning System Selection Considerations

3.1 Relevant International Standards

The design of data center air conditioning systems needs to follow relevant international and industry standards, which provide the technical basis for ensuring environmental quality and energy efficiency.

• ASHRAE Guidelines: ASHRAE provides comprehensive guidelines for data center thermal management, including recommended temperature and humidity ranges, air distribution best practices, and energy efficiency considerations.

• ISO/IEC Standards: Standards like ISO/IEC 30134 series (Data Centre Key Performance Indicators) cover aspects related to energy efficiency and resource usage, indirectly influencing cooling system design.

• Uptime Institute Tiers: The Tier Classification System defines levels of data center resilience and redundancy, which impacts the design and redundancy requirements for cooling systems.

• Regional Standards: Various regions may have their own specific standards or energy efficiency requirements for data centers, such as the EU Code of Conduct for Data Centres or local building codes.

These standards form the normative framework for data center air conditioning system design, and relevant requirements must be considered and followed during the design process.

3.2 Key Considerations for System Selection

Selecting the appropriate data center air conditioning system requires considering multiple factors beyond just cooling capacity, to ensure system reliability, economy, and maintainability.

• Energy Efficiency Ratio & Annual Performance Factor: Selecting high-efficiency air conditioning equipment is crucial. Efficient systems should utilize performance-based design methods according to climate conditions and building function, selecting high-efficiency equipment and precise implementation to enhance annual operational efficiency.

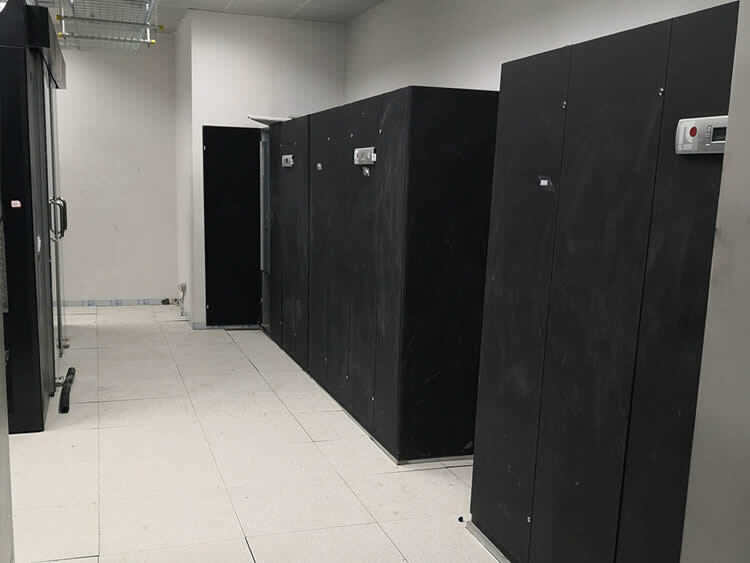

• Air Distribution Selection: The air distribution method directly affects cooling effectiveness. Commonly, raised floor underfloor air supply is used, with cabinets arranged in hot aisle/cold aisle configurations. This method provides uniform air distribution, low noise, and effectively delivers cool air to equipment intakes.

• Redundancy Configuration: Based on Tier levels, data centers typically adopt N+X (X=1, 2,…) configuration forms to provide operational reliability and safety. For critical rooms, a 2+1 configuration using 3 air conditioning units might be used, achieving an active/standby mode.

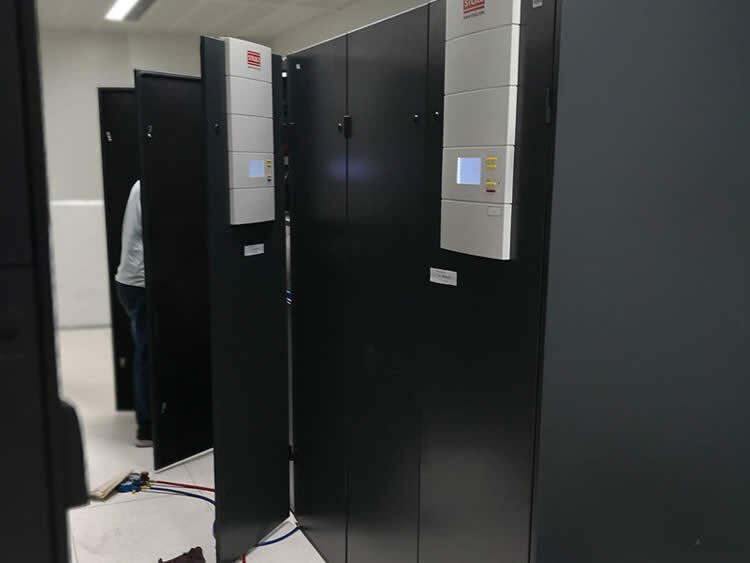

• Control Functions: Modern data center air conditioners should possess comprehensive automatic control functions, including: backup auto-switchover, unit rotation, automatic control of running units based on heat load changes (for energy saving), and standard alarm functions.

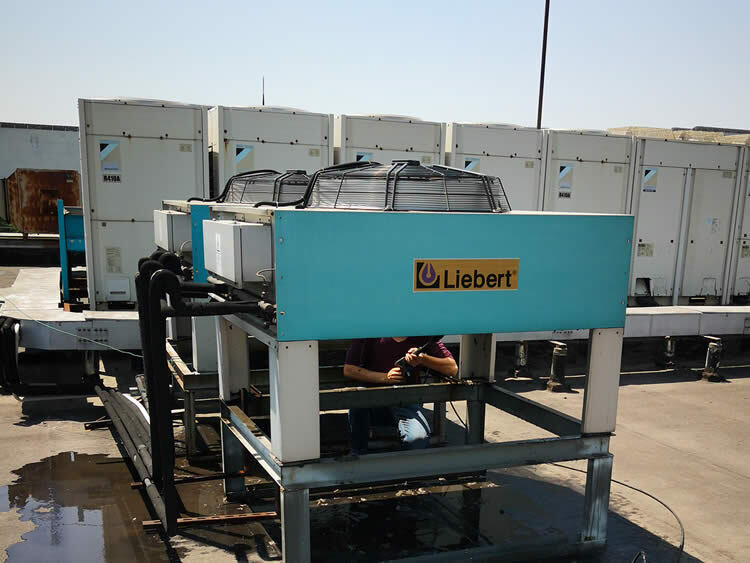

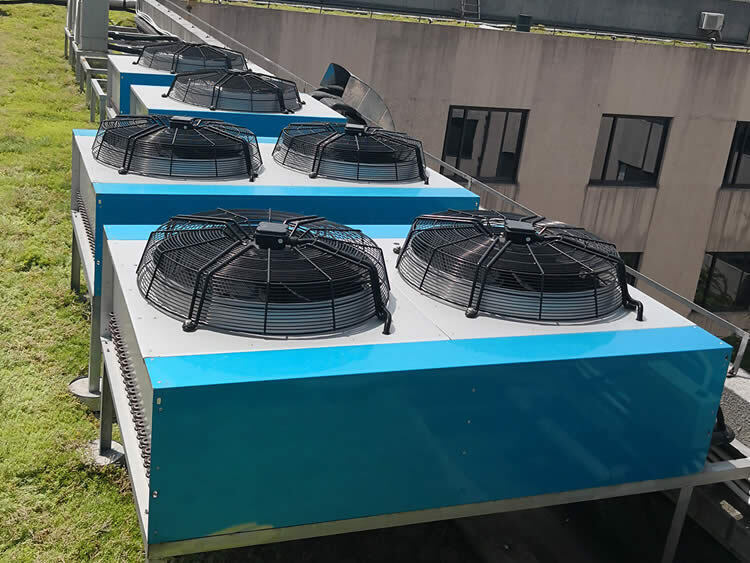

• Cooling Method Selection: Data center air conditioners are typically divided into direct expansion (DX) and indirect cooling (including various water-based systems). DX systems suit small to medium rooms, while large data centers might consider chilled water systems, which often have higher efficiency but also higher investment and maintenance costs.

4. Common Issues and Optimization Recommendations

4.1 Common Misconceptions in Cooling Load Calculation

In practical engineering, several common misconceptions can lead to improper system design, affecting operational effectiveness and energy efficiency.

• Over-reliance on Estimates: Many projects rely too heavily on empirical estimates initially, failing to perform precise calculations based on actual equipment configuration, leading to mismatched AC capacity and actual demand.

• Neglecting Climate Factors: Different regional climates significantly impact environmental heat load. Ignoring this variation can lead to design deviations in cooling capacity.

• Overlooking Hot Aisle/Cold Aisle Configuration: Traditional open rooms differ greatly from those using hot aisle/cold aisle containment in cooling requirements. Containment designs, by effectively isolating hot and cold air streams, can significantly reduce cooling load requirements compared to room-level cooling.

• Ignoring UPS and PDU Heat: It's easy to overlook the heat dissipated by support equipment like UPS and PDUs when calculating the total equipment heat load.

4.2 Optimization Recommendations Based on Practical Experience

Based on experience from multiple data center projects, the following optimization recommendations can effectively enhance the performance and efficiency of data center air conditioning systems:

• Adopt Modular Design: For medium to high-grade data centers, modular, data center-specific air conditioning units should be prioritized. This is highly beneficial for future operation, expansion, and modification.

• Determine Redundancy Strategy Rationally: Not all data centers require N+1 redundancy. The redundancy strategy should be determined based on the criticality of the data center and business continuity requirements to significantly reduce costs.

• Utilize Free Cooling: In suitable climates, free cooling sources should be leveraged to reduce data center cooling energy consumption. For example, during winter in northern regions, outside air or other heat rejection methods can be used. Practical cases show that free cooling techniques can reduce annual AC energy consumption by over 30% in suitable regions.

• Regular Maintenance and Monitoring: The performance of data center AC systems degrades over time, making regular maintenance and performance monitoring crucial.

• Set Appropriate Temperature/Humidity Parameters: Avoid setting the data center temperature too low. Moderately increasing the temperature setpoint (e.g., within the 24-27°C range recommended by ASHRAE) can significantly reduce AC energy consumption. Similarly, avoiding excessive dehumidification saves energy, with a reasonable humidity control range being 40%-60%.

Accurate calculation of data center cooling capacity is the foundation for ensuring a stable and reliable environment. By scientifically determining the heat load, following relevant standards and regulations, and selecting suitable equipment and configuration schemes based on specific application scenarios, efficient and reliable data center air conditioning systems can be built. As technology advances and energy efficiency requirements increase, future data center air conditioning systems will focus more on refined design, intelligent control, and full lifecycle performance optimization, providing a solid environmental foundation for the information infrastructure of the digital age.
